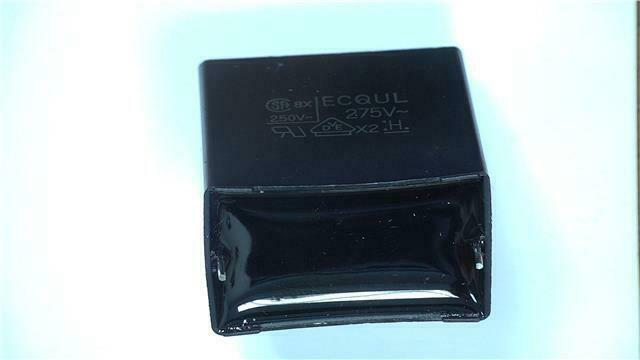

1 x Panasonic 2.2uF Polyester Capacitor PET 275V ac X2 Y ECQUL Series RFI Filter - Panasonic
£0.00
£5.99
RS 807-6812
Unit Quantity:
1
Unit Type:
Unit
Location:
ES-8C
Panasonic
Panasonic 2.2μF Polyester Capacitor PET 275V ac ±20% ECQUL Series
- BMUK Part # :-807-6812
- BrandPanasonic
- Mfr Part No.ECQ-U2A225MLA
- You will get ONE Capacitor
Product Details
ECQU(L) Series
Panasonic ECQUL film capacitors are constructed with non-combustible resin and a flame-retardant plastic case in accordance with UL/CSA and European safety regulation class X2 or Y2/X2.
X Class X2
Specifications
Length
30.5mm
Voltage
275V ac
Depth
19mm
Dielectric
Metallized PET Film
Suppression Class
X2, Y2
Tolerance Plus
+20%
Tolerance Minus
-20%
Brand
Panasonic
Dimensions
30.5 x 19 x 29.5mm
Capacitance
2.2µF
Diameter
0.8mm
Maximum Operating Temperature
+100°C
Minimum Operating Temperature
-40°C
Series
ECQUL
Terminal Type
Radial
Application
Interference Suppressor
Height
29.5mm
Lead Diameter
0.8mm
Lead Pitch
27.5mm
Tolerance
±20%
