1 x ROHM SCT2080KE N-Channel SiC MOSFET, 40A, 1200V Super Fast Inverter TO-247 - ROHM

roll over the image to zoom in


£0.00
£32.99

RS 124-6851
Earn0
reward points

In stock: 80

Sorry! We're out of stock


    Unit Quantity:
    1
    Unit Type:
    Unit
    Country/Region of Manufacture:
    Unknown
    Location:
    ES WS 3D


    ROHM

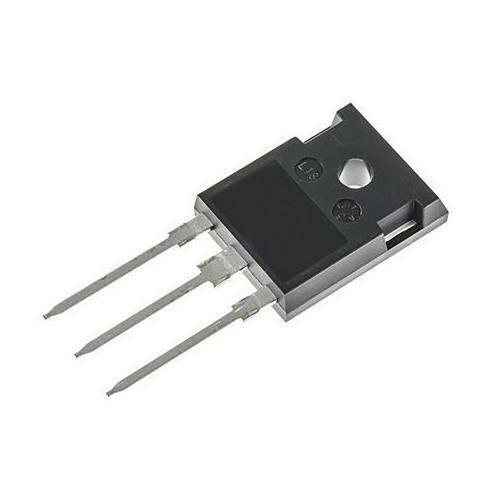

    ROHM SCT2080KE N-channel SiC MOSFET, 40A, 1200V, 3-Pin TO-247


    • BMUK Part No.124-6851
    • BrandROHM
    • Mfr Part No.SCT2080KEC
    •
    • You will get ONE SiC MOSFET
    • rohm-sct2080ke.png








    Product Details






    Specifications


    Maximum Operating Temperature
    +175 °C
    Number of Elements per Chip
    1
    Length
    20.95mm
    Typical Turn-On Delay Time
    35 ns
    Brand
    ROHM
    Typical Turn-Off Delay Time
    76 ns
    Maximum Continuous Drain Current
    40 A
    Package Type
    TO-247
    Maximum Power Dissipation
    262 W
    Series
    SCT2080KE
    Mounting Type
    Through Hole
    Width
    15.9mm
    Forward Transconductance
    3.7s
    Maximum Gate Threshold Voltage
    4V
    Minimum Gate Threshold Voltage
    1.6V
    Height
    5.03mm
    Maximum Drain Source Resistance
    125 mΩ
    Maximum Drain Source Voltage
    1200 V
    Pin Count
    3
    Dimensions
    20.95 x 15.9 x 5.03mm
    Category
    Power MOSFET
    Typical Gate Charge @ Vgs
    106 nC @ 18 V
    Transistor Material
    SiC
    Channel Mode
    Enhancement
    Typical Input Capacitance @ Vds
    2080 pF @ 800 V
    Channel Type
    N
    Maximum Gate Source Voltage
    -6 V, +22 V
    Forward Diode Voltage
    4.6V
