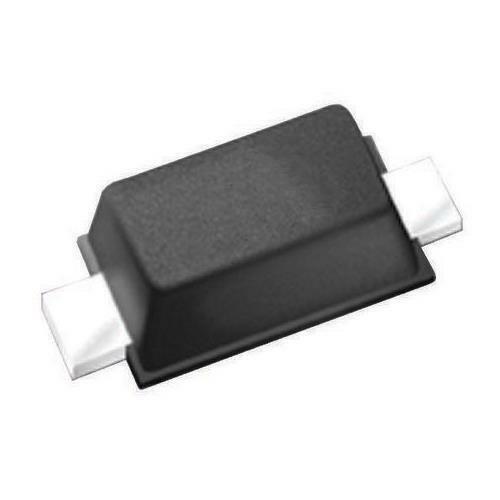

10 x Panasonic Zener Diode DZ2422000L, 22V 5% 2 W SMT 2-Pin TMiniP2 F2 B - Panasonic

roll over the image to zoom in


£0.00
£6.99

RS 760-2846
Earn0
reward points

In stock: 1

Sorry! We're out of stock


    Unit Quantity:
    10
    Unit Type:
    Unit
    Location:
    TS-LB 1E


    Panasonic

    Panasonic Zener Diode, 22V 5% 2 W SMT 2-Pin TMiniP2 F2 B



    • BMUK Part # : 760-2846
    • BrandPanasonic
    • Mfr. Part No.DZ2422000L
    •
    •
    • You will get a pack of 10 Diodes





    Image representative of range



    Product Details

    Zener Diodes 2W, DZ24 Series, Panasonic


    Zener Diodes, Panasonic




    Add product to Compare








    Specifications

    Not what you’re looking for? Select the attributes you require, then click the button below

    Nominal Zener Voltage22V

    Diode ConfigurationSingle

    Number of Elements per Chip1

    Mounting TypeSurface Mount

    Maximum Power Dissipation2 W

    Package TypeTMiniP2 F2 B

    Zener TypeVoltage Regulator

    Zener Voltage Tolerance5%

    Pin Count2

    Test Current10mA

    Maximum Zener Impedance30Ω

    Maximum Reverse Leakage Current10µA

    Length3.8mm

    Dimensions3.8 x 2.4 x 0.82mm

    Typical Voltage Temperature Coefficient21.8mV/°C

    Maximum Operating Temperature+150 °C

    Height0.82mm

    Width2.4mm
