116 x Panasonic ELL5PS Series Shielded Wire-wound SMD Inductor 68uH ±20% - Panasonic
Panasonic

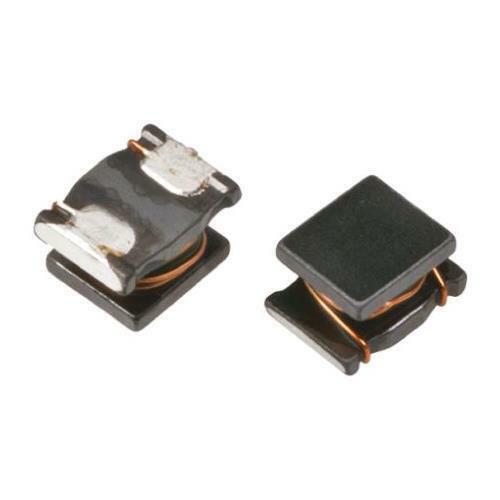

Panasonic ELL5PS Series Shielded Wire-wound SMD Inductor 68 μH ±20% Wire-Wound 480mA Idc
- BMUK Part # :-574-075
- BrandPanasonic
- Mfr. Part No.ELL5PS680M
- You will get a Reel of 116 Inductors
ELL5PS Series Magnetically Shielded Wire Wound Chokes
Panasonic ELL5PS series SMD choke coils feature magnetically shielded construction whilst maintaining low DC resistance and large current capacity. Applications include DC-DC converter circuitry for computer peripherals or cellular phones and chopper circuit decoupling chokes for DC-DC converter circuitry.
Dimensions (mm) | |
Type | L x W x H |
ELL5PS | 5.5 x 5.5 x 2 |
Panasonic Non Standard SMT Inductors (Chokes)
Inductance | 68 μH | |
Maximum DC Current | 480mA | |
Length | 5.5mm | |
Depth | 5.5mm | |
Height | 2mm | |
Dimensions | 5.5 x 5.5 x 2mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 750mΩ | |
Series | ELL5PS | |
Inductor Construction | Wire-Wound |
