1200 x Panasonic DB3X313K0L SMT Schottky Diode, 30V 200mA, 1.5ns, 3-Pin - Panasonic

roll over the image to zoom in


£0.00
£46.99

RS 713-2713
Earn0
reward points

In stock: 1

Sorry! We're out of stock


    Unit Quantity:
    1200
    Unit Type:
    Unit
    Location:
    APR BOX B


    Panasonic

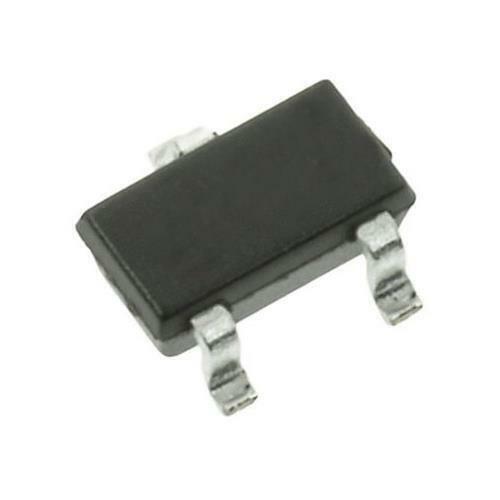

    Panasonic DB3X313K0L SMT Schottky Diode, 30V 200mA, 1.5ns, 3-Pin SC-59


    • BMUK Part # :-713-2713
    • BrandPanasonic
    • Mfr. Part No.DB3X313K0L
    •
    •
    • You will get 1200 Diodes on 1 Reel







    Product Details

    Schottky Barrier Diodes, up to 1.5A, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications


    Maximum Continuous Forward Current200mA

    Diode ConfigurationSingle

    Number of Elements per Chip1

    Peak Reverse Repetitive Voltage30V

    Mounting TypeSurface Mount

    Package TypeSC-59

    Diode TypeSchottky

    Pin Count3

    Maximum Forward Voltage Drop550mV

    Length2.9mm

    Width1.5mm

    Height1.1mm

    Peak Reverse Recovery Time1.5ns

    Peak Non-Repetitive Forward Surge Current1A

    Dimensions2.9 x 1.5 x 1.1mm

    Peak Reverse Current50µA

    Maximum Operating Temperature+125 °C



    For a Specification PDF Please CLICK HERE
