1460 x Panasonic DB3J316J0L Dual SMT Schottky Small Signal Diode, 30V 100mA - Panasonic

roll over the image to zoom in


£0.00
£112.99

RS 711-5461
Earn0
reward points

In stock: 1

Sorry! We're out of stock


    Unit Quantity:
    1460
    Unit Type:
    Unit
    Location:
    TS-LB 1i


    Panasonic

    Panasonic DB3J316J0L Dual SMT Schottky Small Signal Diode, Common Anode, 30V 100mA, 800ps, 3-Pin SMini3 F2 B


    • BMUK Part # :-711-5461
    • BrandPanasonic
    • Mfr. Part No.DB3J316J0L
    •
    •
    • You will get 1460 Diodes on 1 Reel

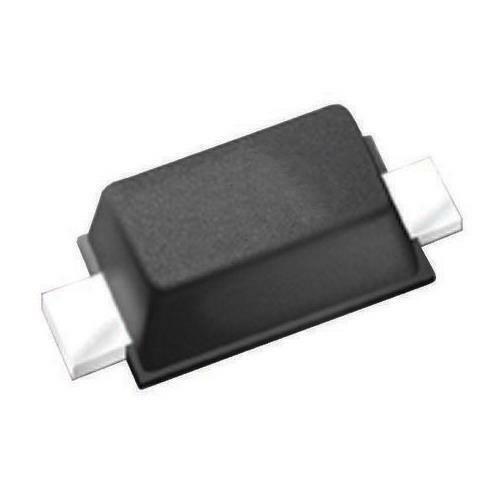

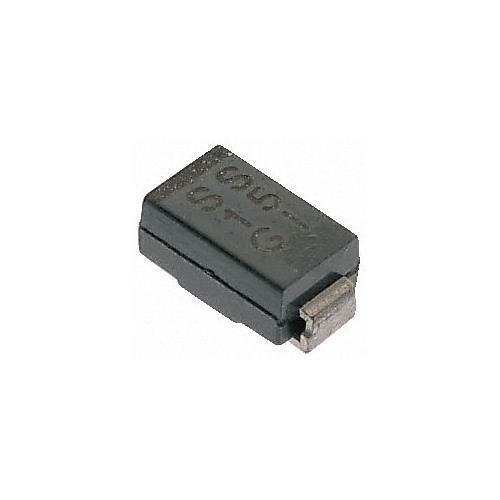

    Image representative of range



    Product Details

    Schottky Barrier Diodes, up to 1.5A, Panasonic


    Diodes and Rectifiers, Panasonic


    Specifications


    Maximum Continuous Forward Current100mA

    Diode ConfigurationCommon Anode

    Rectifier TypeSmall Signal

    Number of Elements per Chip2

    Peak Reverse Repetitive Voltage30V

    Mounting TypeSurface Mount

    Package TypeSMini3 F2 B

    Diode TypeSchottky

    Pin Count3

    Maximum Forward Voltage Drop550mV

    Length2mm

    Width1.25mm

    Height0.9mm

    Peak Reverse Recovery Time800ps

    Maximum Operating Temperature+125 °C

    Peak Non-Repetitive Forward Surge Current1A

    Peak Reverse Current15µA

    Dimensions2 x 1.25 x 0.9mm



    To view the datasheet please Click Here
