1460 x Panasonic Zener Diode, 47V 5% 2 W SMT 2-Pin TMiniP2 F2 B - Panasonic

roll over the image to zoom in


£0.00
£293.99

RS 760-2870P
Earn0
reward points

In stock: 1

Sorry! We're out of stock


    Unit Quantity:
    1460
    Unit Type:
    Unit
    Location:
    Reel BL2 Box


    Panasonic

    Panasonic Zener Diode, 47V 5% 2 W SMT 2-Pin TMiniP2 F2 B


    • BrandPanasonic
    • Mfr. Part No.DZ2447000L
    •
    •
    •
    • You will get 1460 Diodes on 1 Reel

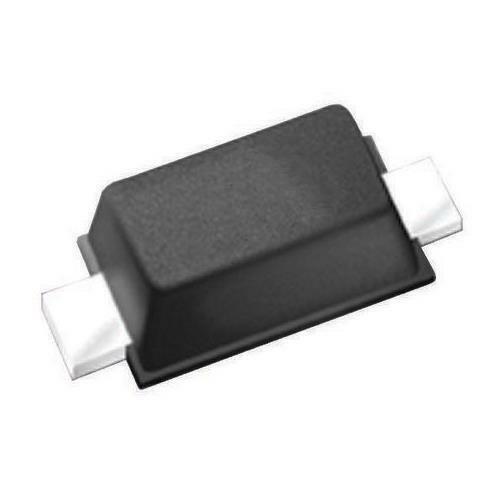

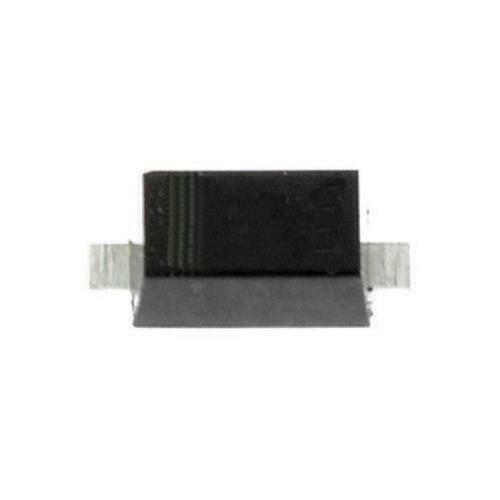

    Image representative of range



    Product Details

    Zener Diodes 2W, DZ24 Series, Panasonic


    Zener Diodes, Panasonic


    Specifications



    Nominal Zener Voltage47V

    Diode ConfigurationSingle

    Mounting TypeSurface Mount

    Number of Elements per Chip1

    Maximum Power Dissipation2 W

    Package TypeTMiniP2 F2 B

    Zener TypeVoltage Regulator

    Zener Voltage Tolerance5%

    Pin Count2

    Test Current5mA

    Maximum Zener Impedance65Ω

    Maximum Reverse Leakage Current10µA

    Length3.8mm

    Dimensions3.8 x 2.4 x 0.82mm

    Width2.4mm

    Height0.82mm

    Maximum Operating Temperature+150 °C

    Typical Voltage Temperature Coefficient55mV/°C



    To view the datasheet please Click Here
