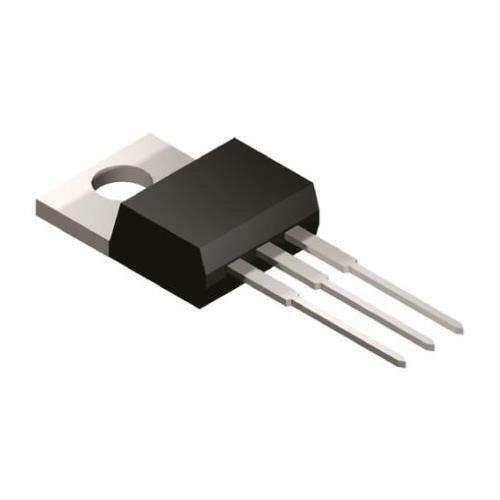

5 x Infineon IPP120P04P4L-03 P-channel MOSFET Transistor, 120A 40V 3-Pin TO-220 - Infineon
Infineon
Infineon IPP120P04P4L-03 P-channel MOSFET Transistor, 120 A, 40 V, Logic Level
- You will get a pack of 5 Transistors
- BMUK Part # :-857-6883
- BrandInfineon
- Mfr. Part No.IPP120P04P4L-03
Infineon OptiMOS™P P-Channel Power MOSFETs
The InfineonOptiMOS™ P-Channel power MOSFETs are designed to give enhanced features meeting quality performances. Features include ultra-low switching loss, on-state resistance, Avalanche ratings as well as being AEC qualified for automotive solutions. Applications include dc-dc, motor control, automotive and eMobility.
Enhancement mode
Avalanche rated
Low switching and conduction power losses
Pb-free lead plating; RoHS compliant
Standard packages
OptiMOS™ P-Channel Series: Temperature range from -55°C to +175°C
MOSFET Transistors, Infineon
Infineon’s large and comprehensive portfolio of MOSFET devices includes the OptiMOS™ and CoolMOS™ families. These products deliver best-in-class performance from the latest generation of state-of-the-art power MOSFETs
Channel Type | P | |
Maximum Continuous Drain Current | 120 A | |
Maximum Drain Source Voltage | 40 V | |
Maximum Drain Source Resistance | 0.0052 Ω | |
Maximum Gate Threshold Voltage | 2.2V | |
Minimum Gate Threshold Voltage | 1.2V | |
Maximum Gate Source Voltage | ±16 V | |
Package Type | TO-220 | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Channel Mode | Enhancement | |
Category | Power Transistor | |
Maximum Power Dissipation | 136 W | |
Configuration | Single | |
Width | 4.4mm | |
Number of Elements per Chip | 1 | |
Height | 15.65mm | |
Maximum Operating Temperature | +175 °C | |
Length | 10mm | |
Dimensions | 10 x 4.4 x 15.65mm | |
Typical Turn-On Delay Time | 21 ns | |
Minimum Operating Temperature | -55 °C | |
Typical Gate Charge @ Vgs | 180 nC @ -10 V | |
Typical Input Capacitance @ Vds | 11380 pF @ -25 V | |
Typical Turn-Off Delay Time | 85 ns |
